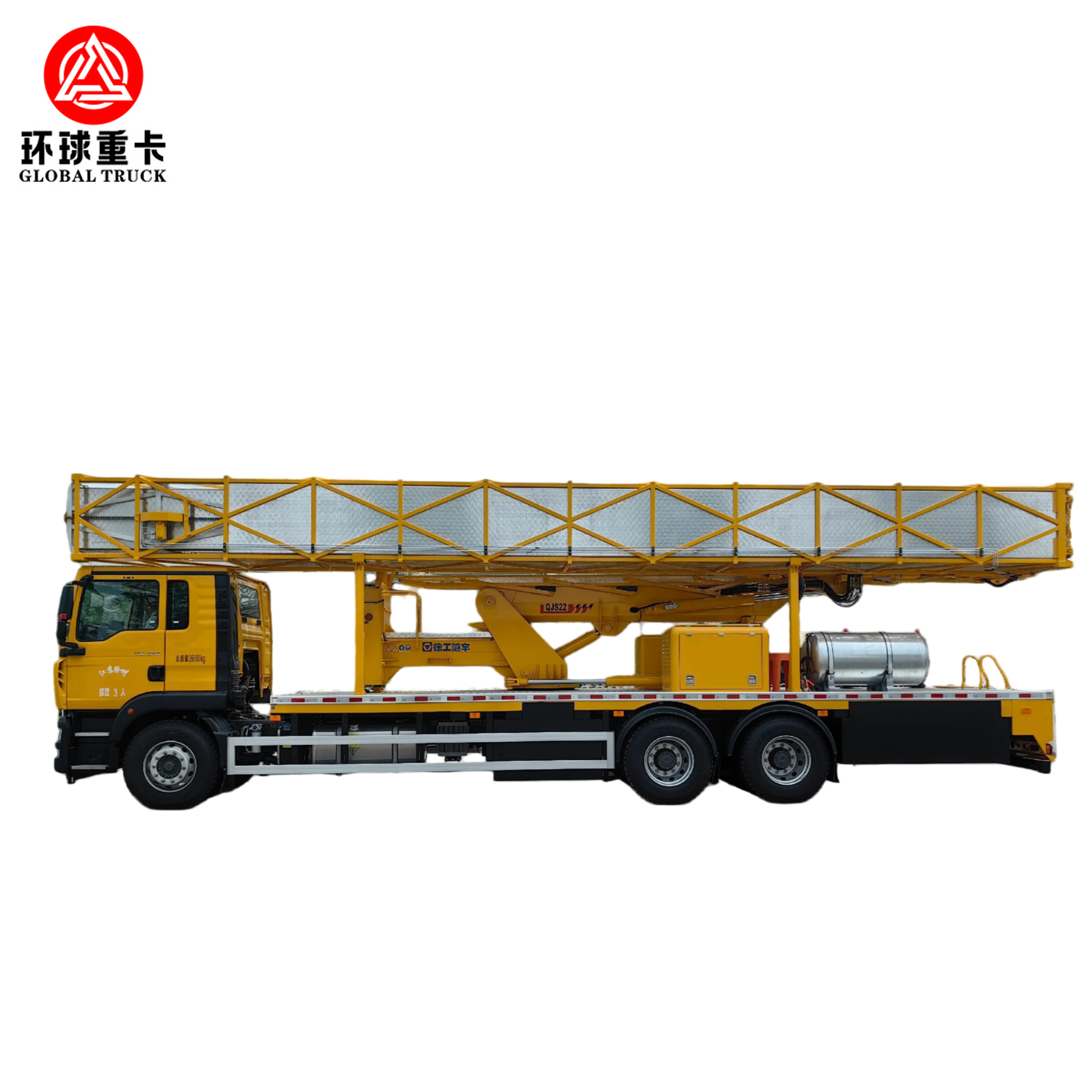

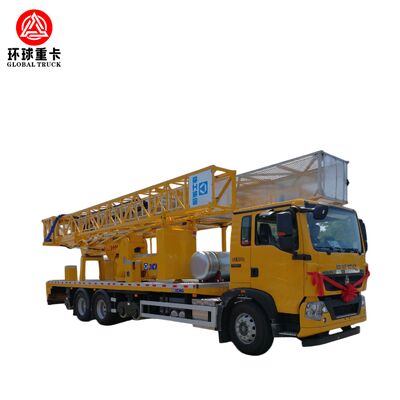

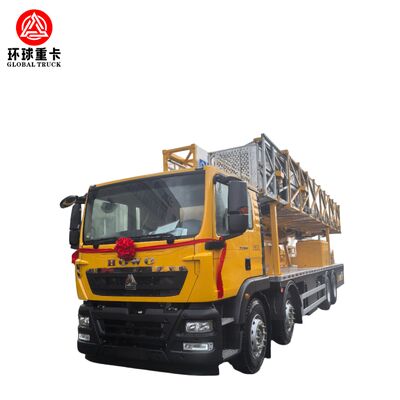

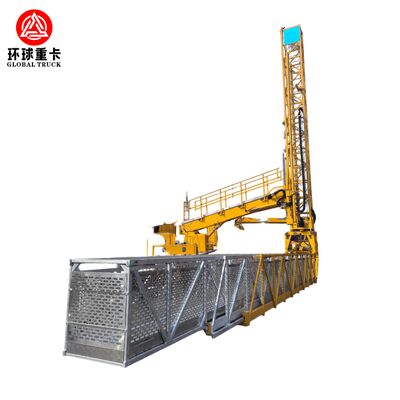

High Performance Bridge Inspection Truck with 20 Meters Working Height 360° Continuous Rotation and 4-Point Hydraulic Outriggers

High Performance Bridge Inspection Truck with 20 Meters Working Height 360° Continuous Rotation and 4-Point Hydraulic Outriggers

High Performance Bridge Inspection Truck with 20 Meters Working Height 360° Continuous Rotation and 4-Point Hydraulic Outriggers
High Performance Bridge Inspection Truck with 20 Meters Working Height 360° Continuous Rotation and 4-Point Hydraulic Outriggers
High Performance Bridge Inspection Truck with 20 Meters Working Height 360° Continuous Rotation and 4-Point Hydraulic Outriggers
جزئیات محصول:
محل منبع: چین
نام تجاری: SINOTRUK
گواهی: CE
شماره مدل: خودروی بازرسی پل
پرداخت:
مقدار حداقل تعداد سفارش: 1 عدد
قیمت: قابل مذاکره
جزئیات بسته بندی: برهنه
زمان تحویل: 35 روز کاری
شرایط پرداخت: L/C، T/T
قابلیت ارائه: 500 واحد در سال
مخاطب
توضیحات محصول جزئیات
تایپ کنید: کامیون بازرسی پل استاندارد انتشار: یورو 2
گواهی: ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE نوع انتقال: دستی
وضعیت: جدید تعداد صندلی ها: 2
کد HS: 8705909990 ظرفیت مخزن سوخت: 400 لیتر
برجسته کردن:

20 meters working height Bridge Inspection Truck,360° continuous rotation Bridge Maintenance Vehicle,4-point hydraulic outriggers Hydraulic Bridge Inspection Vehicle

,

360° continuous rotation Bridge Maintenance Vehicle

,

4-point hydraulic outriggers Hydraulic Bridge Inspection Vehicle

Advanced Bridge Inspection Truck with Telescopic Boom System
High Reach | Strong Stability | Professional Bridge Maintenance Solution
Product Overview
The Advanced Bridge Inspection Truck is engineered to deliver safe, efficient, and precise access to bridge structures, particularly for complex inspection and maintenance operations. Featuring a multi-section telescopic boom system, this vehicle enables operators to reach deep under bridges, inspect bearings, expansion joints, and structural components without requiring scaffolding or traffic disruption. Widely utilized by highway maintenance departments, construction companies, and government infrastructure projects across Africa, the Middle East, and Southeast Asia.
Technical Configuration
  • Chassis Options: HOWO / Shacman / Dongfeng
  • Drive Type: 4×2 / 6×4 / 8×4
  • Working Height: Up to 20 meters (customizable)
  • Horizontal Reach: 15-22 meters
  • Platform Load Capacity: 200-500 kg
  • Platform Size: 1200 × 600 mm (customizable)
  • Boom Type: Multi-stage hydraulic telescopic boom
  • Rotation: 360° continuous rotation
  • Hydraulic System: Electro-hydraulic proportional control system
  • Stabilizers: 4-point hydraulic outriggers with leveling system
  • Control System: Dual control (platform + ground remote control)
  • Safety Devices: Emergency stop, tilt alarm, overload protection
  • Power Source: PTO-driven hydraulic pump
  • Working Environment: Suitable for complex terrain and hot climates
Key Advantages
  • Extended Working Reach: Multi-section boom provides flexible access to all inspection points
  • High Operational Safety: Equipped with advanced safety systems to protect operators at height
  • Efficient Maintenance Work: Eliminates the need for scaffolding, saving time and labor costs
  • Strong Stability: Hydraulic outriggers ensure balance during full extension
  • Easy Operation: User-friendly control system with smooth boom movement
  • Built for Harsh Environments: Designed for hot weather and rough road conditions
Typical Applications
  • Bridge inspection and structural assessment
  • Highway and railway maintenance
  • Overpass and viaduct repair
  • Municipal engineering and infrastructure projects
  • Tunnel and elevated structure maintenance
Customer Feedback
"This bridge inspection truck is very efficient. The boom movement is smooth and precise, which helps us complete inspections much faster."
— Road Maintenance Company, Kenya
"Stable and safe. We can now inspect bridges without closing traffic, which saves a lot of time and cost."
— Infrastructure Contractor, Nigeria
Frequently Asked Questions
Can the working height be customized?
Yes, we can customize working height from 14m to 25m according to project requirements.
Is the platform stable during operation?
Yes, the vehicle is equipped with 4-point hydraulic outriggers and automatic leveling system for maximum stability.
What kind of control system does it use?
It uses a dual control system, including platform control and ground remote control.
Can it be used in Africa's hot and rough road conditions?
Yes, the truck is specially designed for high temperature environments and poor road conditions.
How long is the production lead time?
Usually 30-45 working days depending on configuration and order quantity.
Do you provide spare parts and technical support?
Yes, we provide spare parts supply, video guidance, and remote technical support.
