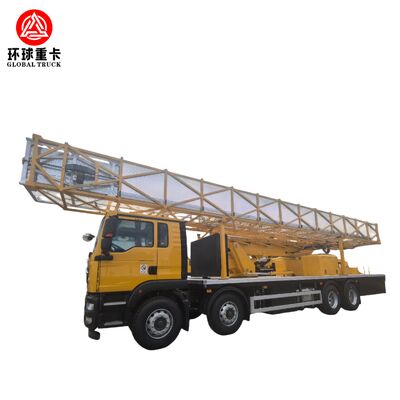

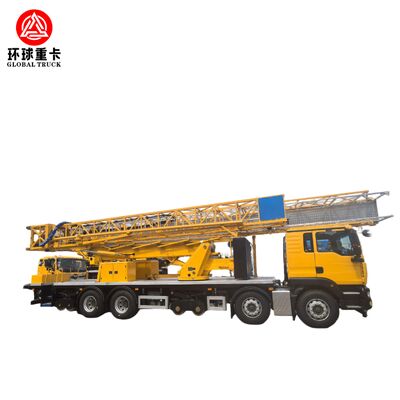

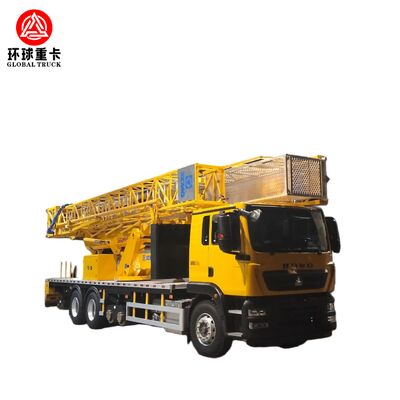

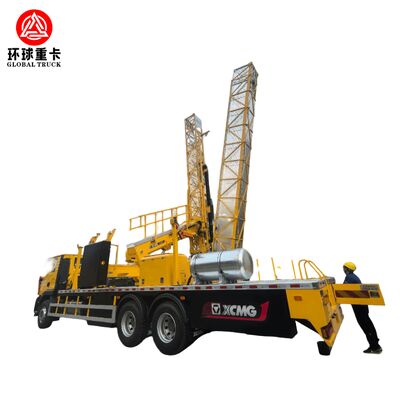

Name: Professional Bridge Inspection Truck with 12m-20m Working Height Euro III Emission Standard and Hydraulic Outriggers for Under Bridge Access
Brand: Shandong Global Heavy Truck Import&Export Co.,Ltd
SKU: خودروی بازرسی پل
Price: 135,000.00 USD
Availability: InStock

خانه محصولات کامیون کمپرسی معدن

Professional Bridge Inspection Truck with 12m-20m Working Height Euro III Emission Standard and Hydraulic Outriggers for Under Bridge Access

جزئیات محصول:

محل منبع:	چین
نام تجاری:	SINOTRUK
گواهی:	CE
شماره مدل:	خودروی بازرسی پل

پرداخت:

مقدار حداقل تعداد سفارش:	1 عدد
قیمت:	قابل مذاکره
جزئیات بسته بندی:	برهنه
زمان تحویل:	35 روز کاری
شرایط پرداخت:	L/C، T/T
قابلیت ارائه:	500 واحد در سال

مخاطب

توضیحات محصول جزئیات

تایپ کنید:	کامیون بازرسی پل	استاندارد انتشار:	یورو 3
گواهی:	ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE	نوع انتقال:	دستی
وضعیت:	نو و کارکرده	تعداد صندلی ها:	دو تا سه
کد HS:	8705909990	ظرفیت مخزن سوخت:	400 لیتر
برجسته کردن:	12m-20m Working Height Bridge Inspection Truck,Euro III Emission Standard Under Bridge Access Platform,Hydraulic Outriggers Bridge Maintenance Vehicle , Euro III Emission Standard Under Bridge Access Platform , Hydraulic Outriggers Bridge Maintenance Vehicle

Professional Under Bridge Access Platforms for Structural Maintenance

Bridge Inspection Truck featuring XCMG Upper Structure with SINOTRUK HOWO Chassis

Chassis Configuration (SINOTRUK HOWO)

Drive Type	4x2 / 6x4 optional
Engine	SINOTRUK / Weichai diesel engine
Power Output	266 HP - 420 HP
Emission Standard	Euro II / III / IV / V
Transmission	10F / 12F manual gearbox
Wheelbase	3800-5000 mm (customizable)
Tire	11.00R20 / 12R22.5
Fuel Tank Capacity	200-400 L
Brake System	Air brake with ABS (optional)

Upper Structure (XCMG Bridge Inspection System)

Brand	XCMG
Maximum Working Height	12m / 14m / 16m / 18m / 20m
Maximum Horizontal Reach	8m - 12m
Platform Capacity	200 kg - 400 kg
Platform Size	Approx. 1200-1500 mm (L)
Rotation Angle	±180° or 360° continuous (optional)
Boom Type	Telescopic / Folding arm
Operation Mode	Electro-hydraulic control
Control System	Ground control, Platform control, Wireless remote control (optional)

Hydraulic System

Hydraulic Pump: High-pressure gear pump
System Pressure: 16-20 MPa
Hydraulic Oil Tank: Equipped with cooling system
Components: High-quality valves and cylinders
Safety: Pressure relief valve + overload protection

Safety & Protection Systems

Anti-overturning stability system
Automatic leveling outriggers
Emergency stop system (dual control)
Limit switches for height and rotation
Hydraulic lock and anti-fall protection
Platform safety guardrails
Non-slip working platform

Electrical System

24V DC system
Waterproof wiring harness
Emergency backup battery
LED working lights
Optional: monitoring camera system

Product Advantages

High Reliability: XCMG upper structure + SINOTRUK chassis, both globally proven brands
Excellent Stability: Hydraulic outriggers ensure safe operation even on uneven ground
Flexible Operation: Multi-directional working arm for complex bridge structures
Easy Maintenance: Standard components with strong global spare parts support
Cost-Effective: Competitive price with long service life and low maintenance cost
Strong Adaptability: Suitable for Africa, Southeast Asia, Middle East, and Latin America

Typical Work Conditions

Highway bridge inspection
Urban overpass maintenance
Railway bridge inspection
Drainage system and structure inspection
Emergency repair and maintenance operations

Production & Delivery

Production Time	30-45 days after deposit
Packaging	Naked / Waxed / Ro-Ro shipment
Delivery Port	Qingdao / Tianjin / Shanghai
Inspection	Factory inspection before shipment available

Customer Feedback

Client (Kenya - Road Authority): "The machine performs very well in our daily inspection work. The chassis is strong enough for rough road conditions, and the boom system is stable and precise."

Client (Ghana - Construction Company): "We are satisfied with the lifting performance. The safety system gives our operators confidence when working at height."

Client (Tanzania - Municipal Project): "The delivery was on time, and the machine works efficiently. It significantly improves our bridge maintenance capability."

Client (Zambia - Contractor): "Good balance between price and performance. The equipment is easy to operate and maintain."

Frequently Asked Questions

Q1: Can you provide different working heights?

A1: Yes, we can customize working heights from 12m to 20m depending on your requirements.

Q2: What kind of road conditions is this truck suitable for?

A2: It is designed for both urban roads and rough conditions, especially suitable for African and developing markets.

Q3: Is training provided?

A3: Yes, we provide operation manuals, video guidance, and optional on-site training.

Q4: What is the warranty period?

A4: Typically 12 months for the upper structure and chassis.

Q5: Can I choose different chassis brands?

A5: Yes, we offer SINOTRUK, FAW, and Dongfeng chassis based on your preference.

Q6: How do you ensure product quality?

A6: We conduct strict factory testing, including load testing, hydraulic testing, and safety system inspection before delivery.

Q7: Do you provide spare parts?

A7: Yes, we supply spare parts and long-term technical support.

Commercial Terms

Minimum Order Quantity (MOQ)	1 unit
Payment Terms	T/T (30% deposit, 70% before shipment)
Trade Terms	FOB / CIF / CFR
Supply Ability	20-50 units per month
After-Sales Service	Remote support + spare parts supply

We provide high-quality bridge inspection vehicles with stable performance and competitive pricing. If you are looking for a reliable solution for bridge maintenance and infrastructure inspection, feel free to contact us for detailed specifications and quotation.
